how to find out who needs to clear out the dishwasher

We use the term “smart home” lightly these days. It has become a term of marketing and phantastic stories.

Considering how readily available lots of different sensors, actors and personal-assistants are these days one would think that most people would start to expect more from the marketing “smart-home”.

I believe that the smart is to be found in the small and simple. There are a lot of small things that actually make something feel smart without it actually being smart about anything.

Being smart is something not achieved yet – not even by a far stretch of the sense of the word. So let’s put that to the sides of the discussion for now and move a simple thing in the middle of this article.

Have you ever had an argument about who should or should have cleared out the dishwasher after it’s finished?

We had.

So we outsourced the discussion and decision to a 3rd party. We made our house understand when the dishwasher starts and ends it’s task. And made it flip a coin.

There was already a power consumption monitoring in place for the dishwasher. Adding a hysteresis over that monitoring would yield a simple “starts running” / “stops running” state of the dishwasher.

Pictured above is said power consumption.

  • When the values enter the red area in the graph the dishwasher is considered to be running.
  • When it leaves that area the dishwasher is considered finished/not running

Now adding a bit of random coin-tossing by the computer and each time when the dishwasher is detected to have started work a message is sent out depending on the result of the coin-toss.

That message is published and automatically displayed on all active displays in the house (TVs/…) and sent as push notifications to all members that need to be informed of this conclusive and important decision.

In short:

Everyone gets a push notification who is going to clear out the dishwasher based upon a coin-toss by a computer every time the dishwasher starts.

The base of all of this is a Node-RED flow that that uses the power consumption MQTT messages as an input and outputs back to MQTT as well as pushes out the push notifications to phones, screens and watches.

Additionally it creates a calendar entry with the start-finish time of the dishwasher run as well as the total energy consumption for this run.

Node-RED flow

The flow works like this: on the right the message enters the flow from MQTT. The message itself contains just the value of the power consumed at this very moment. In this case consumed the dishwasher.

The power consumption is updated regularly, every couple of seconds this way. So every couple of seconds this flow runs and gets an updated value of

Next a hysteresis is applied. In simple terms this means: when the value goes above a certain threshold the dishwasher is considered to be running. When it goes below a certain threshold then it is considered finished.

When the dishwasher changed it’s state to “running” the flow will generate a random number between 0 and 1. This give a 50:50 chance for either Steffi or Daniel be the chosen one to clear out the dishwasher for this run. This message is sent out as push notification to all phones, watches and TVs.

When the dishwasher finishes it’s run the total energy consumption is taken and sent out as the “I am done message”. Also this information is added to the calendar. Voilá.

the real smart home has a calendar!

A calendar? Why a calendar you may ask. Oh well there are several reasons. Think of calendars as another way to interact with the house. All sorts of things happen on a timeline. A calendar is only a visual aid to interact with timelines.

May it be a home appliance running and motion being sensed for your home alarm system. All of that can be displayed in a calendar and thus automatically sync to all your devices capable to display this calendar.

And if you start adding entries to a calendar that the house uses to know what to do next… how about putting light on-off times into an actual calendar right on your phone instead of a complicated browser user interface like many of those marketing smart-homes want us to use?

Never confuse wisdom with luck.

44th Rule of Acquisition / Ferengi

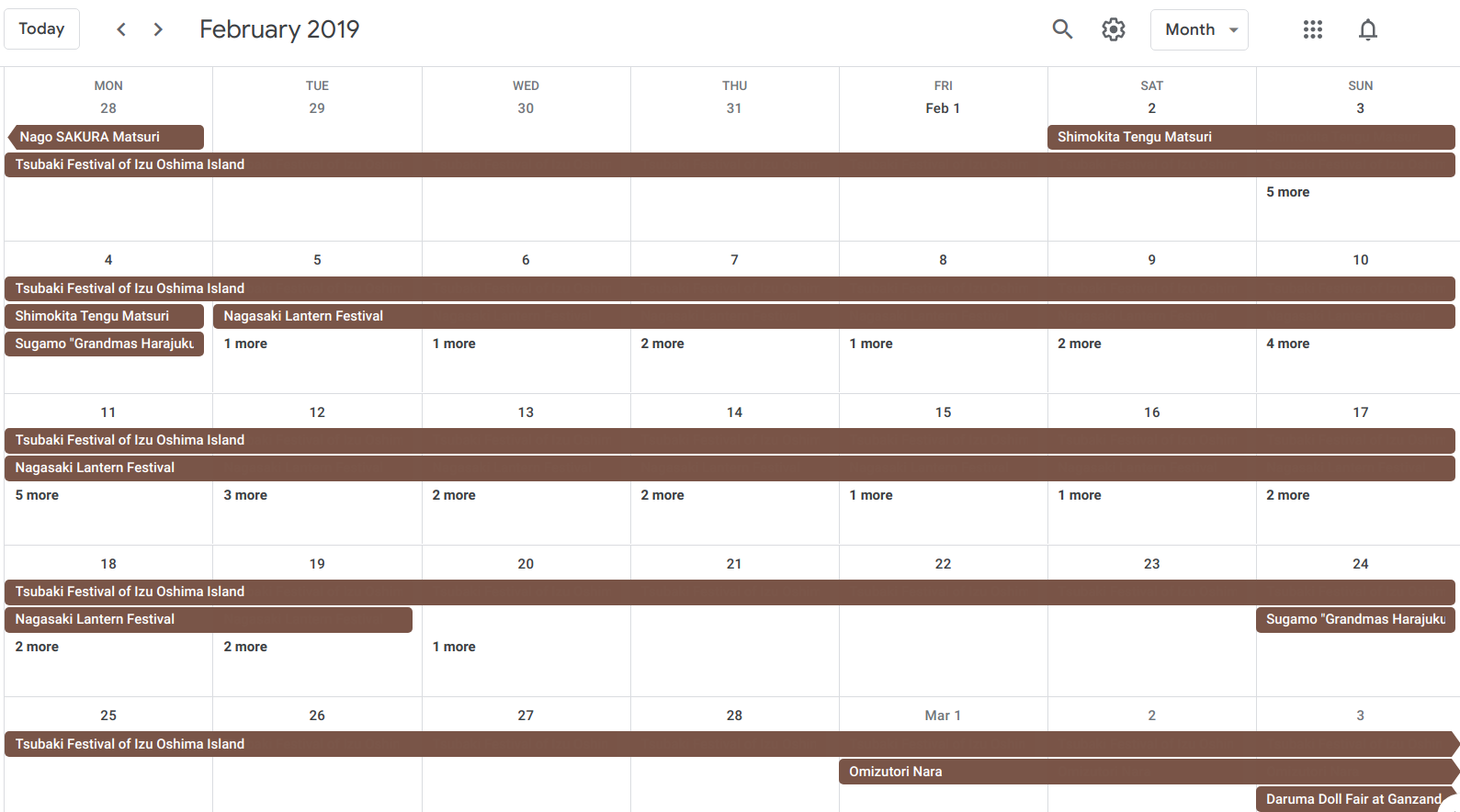

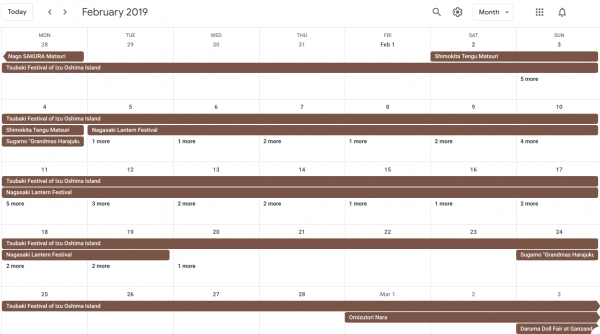

japanese festival calendar

Last year I had started to create a calendar that would hold all the events and festivals (まつり / matsuri) in Japan – especially Tokyo – I can get ahold of.

Since it has become a custom in my family to spend several weeks several times a year in the Tokyo area this calendar is used and updated frequently.

Of course it is a calendar you can export, import and subscribe to with any iCal / ICS capable device at your disposal. And probably that means any device that has a calendar app or a browser.

You can click this link and subscribe through google calendar: japanese matsuri calendar
