QuickCharge 3 (QC3) enable your Arduino project

You might have asked yourself how it is that some phones charge up faster than others. Maybe the same phone charges at different speed when you’re using a different cable or power supply. It even might not charge at all.

There is some very complicated trickery in place to make those cables and power supplies do things in combination with the active devices like phones. Many of this is implemented by standards like “Quick Charge”:

Quick Charge is a technology found in QualcommSoCs, used in devices such as mobile phones, for managing power delivered over USB. It offers more power and thus charges batteries in devices faster than standard USB rates allow. Quick Charge 2 onwards technology is primarily used for wall adaptors, but it is also implemented in car chargers and powerbanks (For both input and output power delivery).

Wikipedia: Quick Charge

So in a nutshell: If you are able to speak the quick charge protocol, and with the right cable and power supply, you are able to get anything between 3.6 and 20V out of such a combination by just telling the power supply to do so.

This is great for maker projects in need of more power. There’s lots of things to consider and be cautious about.

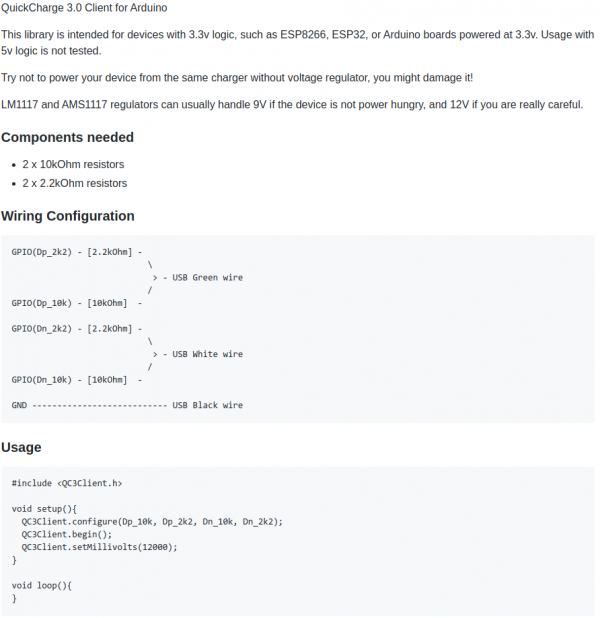

“Speaking” the protocol just got easier though. You can take this open source library and “power up your project”:

The above mentioned usage-code will give you 12V output from the power supply. Of course you can also do…:

Be aware that your project needs to be aware of the (higher) voltage. It’s really not something you should just try. But you knew that.

More on Quick Charge also here.

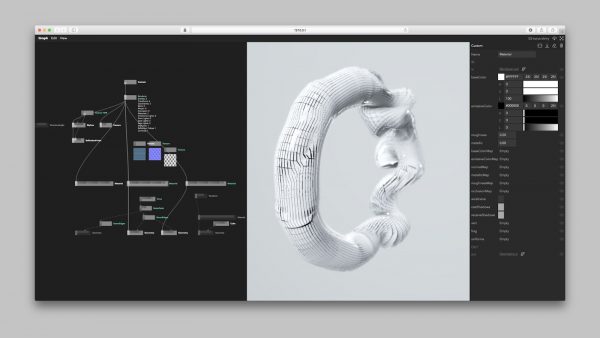

nodes – a new way to create with code

In Nodes you write programs by connecting “blocks” of code. Each node – as we refer to them – is a self contained piece of functionality like loading a file, rendering a 3D geometry or tracking the position of the mouse. The source code can be as big or as tiny as you like. We’ve seen some of ours ranging from 5 lines of code to the thousands. Conceptual/functional separation is usually more important.

Nodes.io

Nodes* is a JavaScript-based 2D canvas for computational thinking. It’s powered by the npm ecosystem and lives on the web. We take inspiration from popular node-based tools but strive to bring the visual interface and textual code closer together while also encouraging patterns that aid the programmer in the prototype and exploratory stage of their process.
*(not to be confused with node.js)

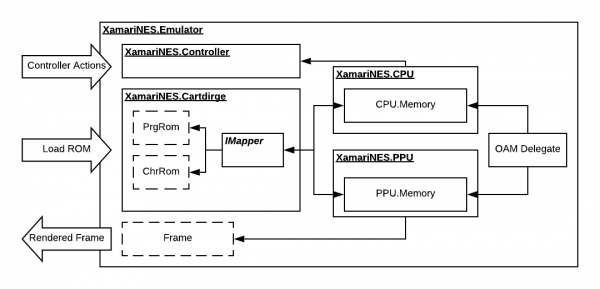

cross-platform NES emulator written in C#

XamariNES is a cross-platform Nintendo Emulator using .Net Standard written in C#. This project started initially as a nighits/weekend project of mine to better understand the MOS 6502 processor in the original Nintendo Entertainment System. The CPU itself didn’t take long working on it a couple hours here and there. I decided once the CPU was completed, how hard could it be just to take it to next step and do the PPU? Here we are a year later and I finally think I have the PPU in a semi-working state.

XamaiNES

If you ever wanted to start looking at and understand emulation this might be a starting point for you. With the high-level C# being used to describe and implement actual existing hardware – like the NES CPU:

Implementation of the Logical Shift Right opcode of the MOS6502 cpu

The author does the full circle and everything you’d expect from a simple working emulator is there:

code autocomplete with deep learning

When you are writing code the patterns seem to repeat every once in a while. Not only the patterns but also the occasion you are going to apply certain code styles and methods while developing.

To support a developer with this creative work the tedious and repetitious tasks of typing out what is thought can be supported by machine learning.

Chances are your favourite IDE already supports an somehow AI driven code autocomplete feature. And if it does not, read on as there are ways to integrate products like TabNine into any editor you can think of…

Visual Studio IntelliCode is a set of AI-assisted capabilities that improve developer productivity with features like contextual IntelliSense, argument completion, code formatting, and style rule inference.

IntelliCode augments existing developer workflows with machine-learning services that provide an understanding of code and its context. It’s applicable for C#, C++ (in preview), JavaScript/TypeScript (in preview), and XAML code today, and will be updated in the future to support more languages.

Visual Studio IntelliCode

Of course there are some new contenders to the scene, like TabNine:

TL;DR: TabNine is an autocompleter that helps you write code faster. We’re adding a deep learning model which significantly improves suggestion quality. You can see videos below and you can sign up for it here.

TabNine

Deep TabNine requires a lot of computing power: running the model on a laptop would not deliver the low latency that TabNine’s users have come to expect. So we are offering a service that will allow you to use TabNine’s servers for GPU-accelerated autocompletion. It’s called TabNine Cloud, …

TabNine

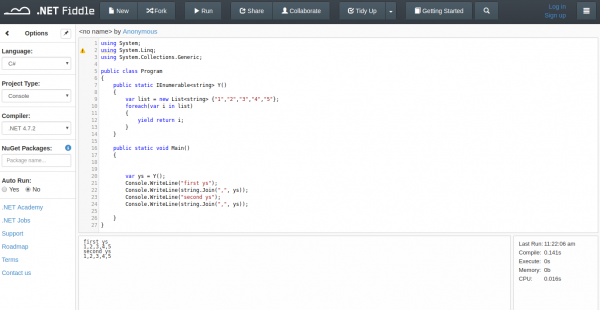

fiddle with .NET in your browser

There are a lot of different “fiddles”. There’s JSFiddle, SQLFiddle, HTMLFiddle, RegExFiddle, PythonFiddle, R-Fiddle, GoFiddle. There is even a page that curates a list of fiddles.

For .NET there’s one too. It supports C#, F# and VB.NET. For trying something quickly or sharing it online this is a nice way to do it:

Hello World C#
MVC even

Bitmap & tilemap generation with the help of ideas from quantum mechanics

You can get a grasp at the beautiful side of science with visualizations and algorithms that output visual results.

This is the example of producing lots and lots of complex data (houses!) from a small set of input data. It is widely used in game development but also can be helpful to generate parameterized test and simulation environments for machine learning.

So before sending you over to the more detailed explanation the visual example:

This is a lot of different house images. Those are generated using a program called WaveFunctionCollapse:

WFC initializes output bitmap in a completely unobserved state, where each pixel value is in superposition of colors of the input bitmap (so if the input was black & white then the unobserved states are shown in different shades of grey). The coefficients in these superpositions are real numbers, not complex numbers, so it doesn’t do the actual quantum mechanics, but it was inspired by QM. Then the program goes into the observation-propagation cycle:

On each observation step an NxN region is chosen among the unobserved which has the lowest Shannon entropy. This region’s state then collapses into a definite state according to its coefficients and the distribution of NxN patterns in the input.

On each propagation step new information gained from the collapse on the previous step propagates through the output.

On each step the overall entropy decreases and in the end we have a completely observed state, the wave function has collapsed.

It may happen that during propagation all the coefficients for a certain pixel become zero. That means that the algorithm has run into a contradiction and can not continue. The problem of determining whether a certain bitmap allows other nontrivial bitmaps satisfying condition (C1) is NP-hard, so it’s impossible to create a fast solution that always finishes. In practice, however, the algorithm runs into contradictions surprisingly rarely.

Wave Function Collapse algorithm has been implemented in C++PythonKotlinRustJuliaGoHaxeJavaScript and adapted to Unity. You can download official executables from itch.io or run it in the browser. WFC generates levels in Bad NorthCaves of Qudseveral smaller games and many prototypes. It led to new research. For more related workexplanationsinteractive demosguidestutorials and examples see the ports, forks and spinoffs section.

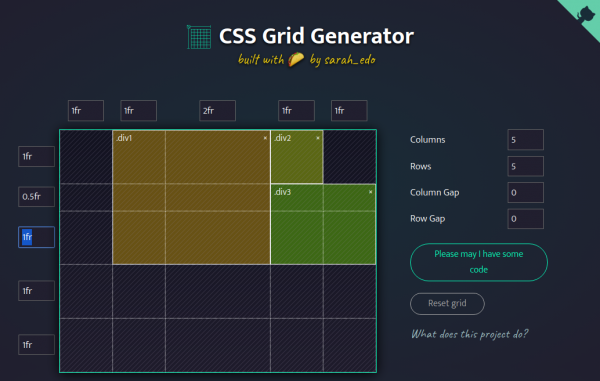

useful CSS Grid Generator

This project is a way for people to use CSS Grid features quickly to create dynamic layouts.

You can set the numbers, and units of your columns and rows, and I’ll generate a CSS grid for you! Drag within the boxes to create divs placed within the grid.

I noticed a lot of people weren’t using Grid because they felt it was too complicated and they couldn’t understand it. Grid is capable of so much, and this small generator only touches on a fraction of the features. The purpose of this is so people get up and running quickly, and create more interesting layouts.

Once you work with this a bit, I suggest checking out resources by Rachel AndrewJen Simmons, and Dave Geddes to dive deeper. There is also a CSS Grid Guide on CSS-Tricks, and a fun little game called Grid Garden to help you learn more!

Source

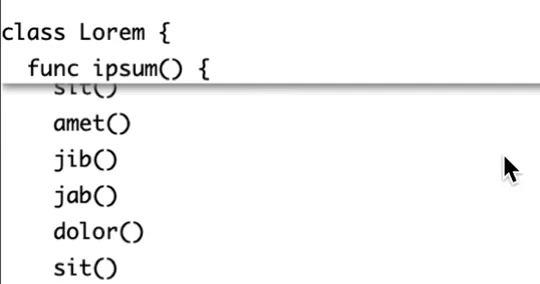

seen: properly scrolling through code

When working on source files with wide-ranging scopes, I wish source editors could pin the declaration lines to the top of the window like section headers, something like this…

Joe Groff on Twitter

This looks like something that would really make a difference when editing code. Let’s see how long until we get something like that in modern editors…

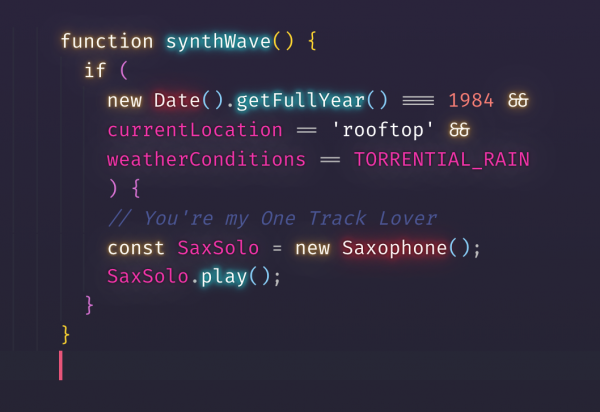

80s code editor theme

The beginning of the decade saw the continuation of the clothing styles of the late 1970s and evolved into heavy metal fashion by the end. However, it had a lot of changes considering that, this fashion became more and more extravagant during the 80s.

The 80s included things like teased hair, ripped jeans, neon clothing and lots of colours and different designs which at first weren’t accepted for a lot of people.

Popular Culture in the 80s

Do you remember that endless summer back in ’84? Cruising down the ocean-highway with the top down, the wind in our hair and heads buzzing with neon dreams?
No, I don’t remember it either, but with this experimental theme we can go there.

Synthwave’84 theme

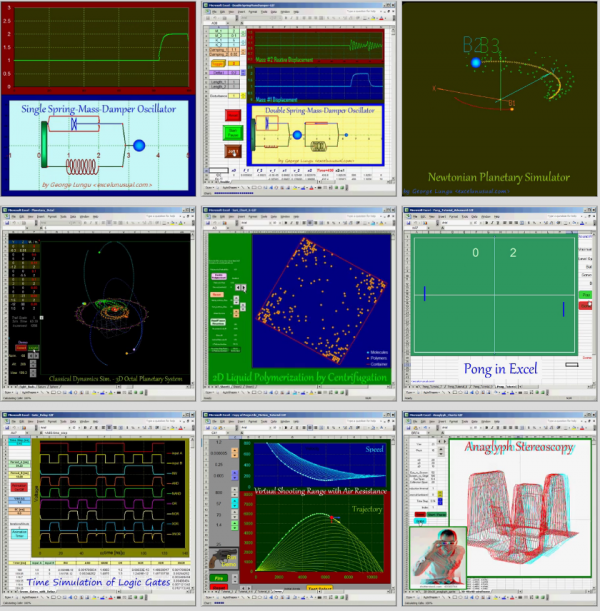

Things you do with Microsoft Excel

Many of us are happy when they can accomplish the most simple tasks with Excel without pulling their own hair out.

And then there are these people who do something entirely different with Excel:

Finding engineering work quite unchallenging lately I decided to start this blog in which to share cool ways of solving engineering problems or just interesting modeling of natural phenomena in MS Excel 2003. I use mainly cell formulas with minimum of VBA in order to take advantage of the ease of “programming” and the native speed of the Excel spreadsheet.

http://www.excelunusual.com/

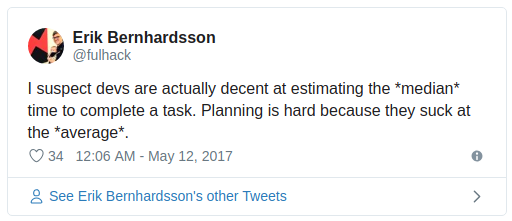

Time estimation in software development

I’ve found myself in these spots several times in my life. Either I had to deliver on an estimate or I had to acknowledge an estimation and deal with the outcomes.

If you are involved in anything digital / software this is a recommended piece to read:

Anyone who built software for a while knows that estimating how long something is going to take is hard. It’s hard to come up with an unbiased estimate of how long something will take, when fundamentally the work in itself is about solving something. One pet theory I’ve had for a really long time, is that some of this is really just a statistical artifact.

Why software projects take longer than you think

convert Markdown scribbles to vector drawings

Every task you take
Every meeting you make
Every keyboard you break
Every note you take
I’ll be storing it for you

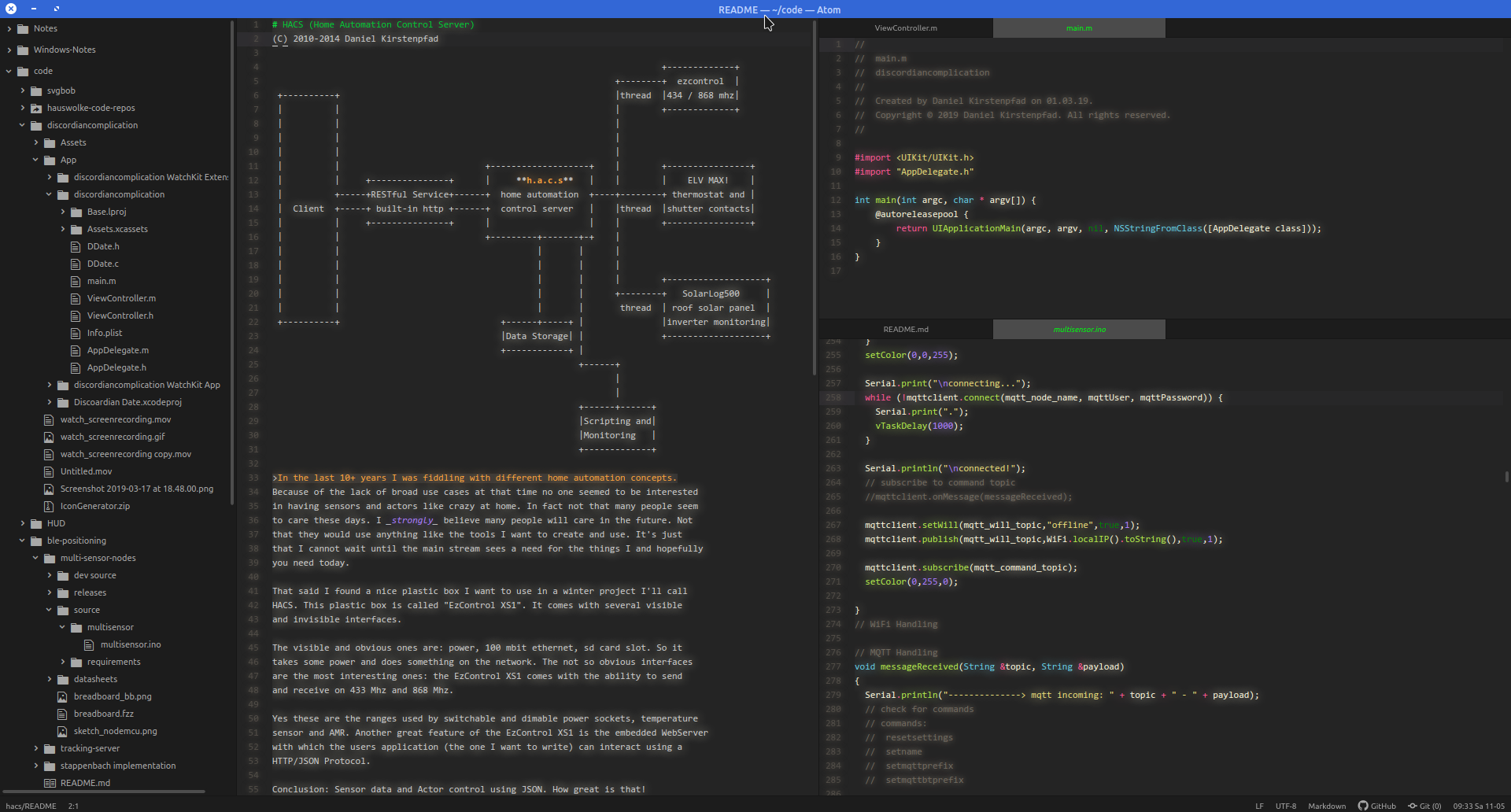

my text editor

Well that was fun! And indeed: a big portion of my professional daily business is taking place in a text editor taking notes and scribbling ideas and thoughts.

I’ve tried many things but the only way that resonated with me was taking notes in Markdown in a text editor that supports markdown. Currently that editor is Atom.io. Mainly because it is not in the way and quite portable. Runs on Linux, Windows, MacOS.

extra cheesy 80s neon theme

This way – I just took a count – I noted down 364.416 words in the last 1.5 years on my current job (equals to about 46 hours of average speed reading…).

Along side those simple text notes and bullet lists I am doing very simple tables as well as ASCII scribbles in Markdown as well. With the right tools it’s extremely easy and much faster than booting up the Powerpoint or worse.

When you have all in Markdown you then can freely stylesheet away and convert to handy PDF files as well. All even with embedded images if you so desire.

But even if you sit on that treasure trove of Markdown there comes the time when you wish you could convert your scribbles to graphics. Even if it is for the sole reason to not have to draw it again for that fancy Powerpoint slide deck.

You’ve got multiple options to accomplish this:

svgbob is at first a command line tool that got a recent level-up with a proper web-frontend:

When given Markdown it creates graphics. In the picture above the input is on the left and the svgbob output on the right (as SVG).

Markdeep is the alternative. Which of both work for your case depends on that specific case. Knowing and using both properly is the best way.

EFI boot app in C#

Zero-Sharp is using the CoreRT runtime to very impressively demonstrate how to get down to bare-metal application operation using C#. It compiles programs into native code…

Everything you wanted to know about making C# apps that run on bare metal, but were afraid to ask:

A complete EFI boot application in a single .cs file.

Michal Stehovsky on Twitter

This is seriously impressive and the screenshot says it all:

a very cool “Hello World“.

pushing your myfitnesspal data to MQTT

MyFitnessPal is a great online service we are using to track what we eat. It’s well integrated into our daily routine – it works!

Unfortunately MyFitnessPal is not well set-up to interface 3rd party applications with it. In fact it appears they are actively trying to make it harder for externals to utilize the data there.

To access your data there’s an open source project called “python-myfitnesspal” which allows you to interface with MyFitnessPal from the command line. This project uses web-scraping to extract the information from the website and will break everytime MyFitnessPal is changing the design/layout.

Since the output for this would be command line text output it is not of great use for a standardized system. What is needed is to have the data sent in a re-useable way into the automation system.

This is why I wrote the additional tool “myfitnesspal2mqtt“. It takes the output provided by python-myfitnesspal and sends it to an MQTT topic. The message then can be decoded, for example with NodeRed, and further processed.

As you can see in the image above I am taking the MQTT message coming from myfitnesspal2mqtt and decoding it with a bit of javascript and outputting it back to MQTT.

var complete = {};
var sodium = {};
var carbohydrates = {};
var calories = {};
var daydate = {};
var fat = {};
var sugar = {};
var protein = {};

var weight = {};
var bodyfat = {};


var goalsodium = {};
var goalcarbohydrates = {};
var goalcalories = {};
var goalfat = {};
var goalsugar = {};
var goalprotein = {};

var caloriesdiff = {};

var ttopic = msg.topic.toLowerCase();

var firstobject = Object.keys(msg.payload)[0];

complete.payload = msg.payload[firstobject].complete;
complete.topic = ttopic+'/complete';

sodium.payload = msg.payload[firstobject].totals.sodium;
sodium.topic = ttopic+'/total/sodium';
carbohydrates.payload = msg.payload[firstobject].totals.carbohydrates;
carbohydrates.topic = ttopic+'/total/carbohydrates';
calories.payload = msg.payload[firstobject].totals.calories;
calories.topic = ttopic+'/total/calories';
fat.payload = msg.payload[firstobject].totals.fat;
fat.topic = ttopic+'/total/fat';
sugar.payload = msg.payload[firstobject].totals.sugar;
sugar.topic = ttopic+'/total/sugar';
protein.payload = msg.payload[firstobject].totals.protein;
protein.topic = ttopic+'/total/protein';

weight.payload = msg.payload[firstobject].measurements.weight;
weight.topic = ttopic+'/measurement/weight';
bodyfat.payload = msg.payload[firstobject].measurements.bodyfat;
bodyfat.topic = ttopic+'/measurement/bodyfat';

goalsodium.payload = msg.payload[firstobject].goals.sodium;
goalsodium.topic = ttopic+'/goal/sodium';
goalcarbohydrates.payload = msg.payload[firstobject].goals.carbohydrates;
goalcarbohydrates.topic = ttopic+'/goal/carbohydrates';
goalcalories.payload = msg.payload[firstobject].goals.calories;
goalcalories.topic = ttopic+'/goal/calories';
goalfat.payload = msg.payload[firstobject].goals.fat;
goalfat.topic = ttopic+'/goal/fat';
goalsugar.payload = msg.payload[firstobject].goals.sugar;
goalsugar.topic = ttopic+'/goal/sugar';
goalprotein.payload = msg.payload[firstobject].goals.protein;
goalprotein.topic = ttopic+'/goal/protein';

caloriesdiff.payload = msg.payload[firstobject].goals.calories - msg.payload[firstobject].totals.calories;
caloriesdiff.topic = ttopic+'/caloriedeficit';

daydate.payload = firstobject;
daydate.topic = ttopic+"/date";

return [complete, sodium, carbohydrates, calories, fat, sugar, protein, weight, bodyfat, goalsodium, goalcarbohydrates, goalcalories, goalfat, goalsugar, goalprotein, daydate, caloriesdiff];

In the end it expands into a multitude of topics with one piece of information per MQTT topic.

And with just that every time the script is run (which I do in a docker container and with a cronjob) the whole lot of pieces of information about nutrition and health stats are being pushed and stored in the home automation system.

This way they are of course also available to the home automation system to do things with it.

Like locking the fridge.

the discordian calendar on your wrist

I’ve finished my little coding exercise today. With a good sunday afternoon used to understand and develop an iOS and Watch application from scratch I just handed it in for Apple AppStore approval.

The main purpose, aside from the obvious “learning how it’s done”, is that I actually needed a couple of complications on my watch that would show me the current day/date in the discordian calendar.

I have to say that the overall process of developing iOS and Watch applications is very streamlined. Much much easier than Android development.

The WatchKit development was probably the lesser great experience in this project. There simply is not a lot of code / documentation and examples for WatchKit yet. And most of them are in Swift – which I have not adapted yet. I keep to Objective-C for now still. With Swift at version 5 and lots of upgrades I would have done in the last years just to keep up with the language development… I guess with my choice to stick to Objective-C I’ve avoided a lot of work.

Anyhow! As soon as the app is through AppStore approval I will write again. Maybe somebody actually wants to use it also? :-)

With writing the app I just came up with the next idea for a complication I just really really would need.

In a nutshell: A complication that I can configure to track a certain calendar. And it will show the time in days/hours/minutes until the next appointment in that specific calendar. I will have it set up to show “how many hours till wakeing up”.

proper links when printing out the internet

Cascading Style Sheets or CSS in short are a very powerful tool to control how content is being displayed.

CSS is designed to enable the separation of presentation and content, including layout, colors, and fonts. This separation can improve content accessibility, provide more flexibility and control in the specification of presentation characteristics, enable multiple web pages to share formatting by specifying the relevant CSS in a separate .css file, and reduce complexity and repetition in the structural content.
Separation of formatting and content also makes it feasible to present the same markup page in different styles for different rendering methods, such as on-screen, in print, by voice (via speech-based browser or screen reader), and on Braille-based tactile devices. CSS also has rules for alternate formatting if the content is accessed on a mobile device.

Wikipedia

So with CSS you can differentiate between target audiences. It gives you control over the output being rendered for specific render targets.

I frequently come across content I want to read. And almost as frequently I do not have time for a longer read when I come across interesting content.

My workflow for this is: keeping some to-be-read backlog of PDF files I have printed from websites. These PDF files are automatically synced to various devices and I can read them at a later stage.

What often is frustrating to see: bad the print results of website layouts as these websites have not even thought of the remote option of being printed.

With this blog I want to support any workflow and first and foremost my own. Therefore printing this blog adds some print-audience specifics.

For example the links I am using in the articles are usually inline when you are using a browser. When you’re printing the article those links get converted and are being written out with the text. So you can have them in your print-outs without loosing information.

this is how Google Chrome shows you the print preview…

And the changes you need to apply to any webpage to instantly enable this are very simple as well! Just add this to your page stylesheet:

@media print {
a {
text-decoration: none;
}
a::after {
content: "( " attr(href) " )";
margin-left: 0.2em;
text-decoration: underline;
}
}

a new header

I had redone the header of this blog a while ago but since I was trying around some things on the template I wanted something more dynamic but without any additional dependencies.

So I searched and found:

Tim Holman did a very nice implementation of this “worm generator” with only using the HTML5 canvas tag and some math. I made some very slight changes and integrated it into the header graphic. It will react to your mouse movement and resets if you click anywhere. Give it a go!
